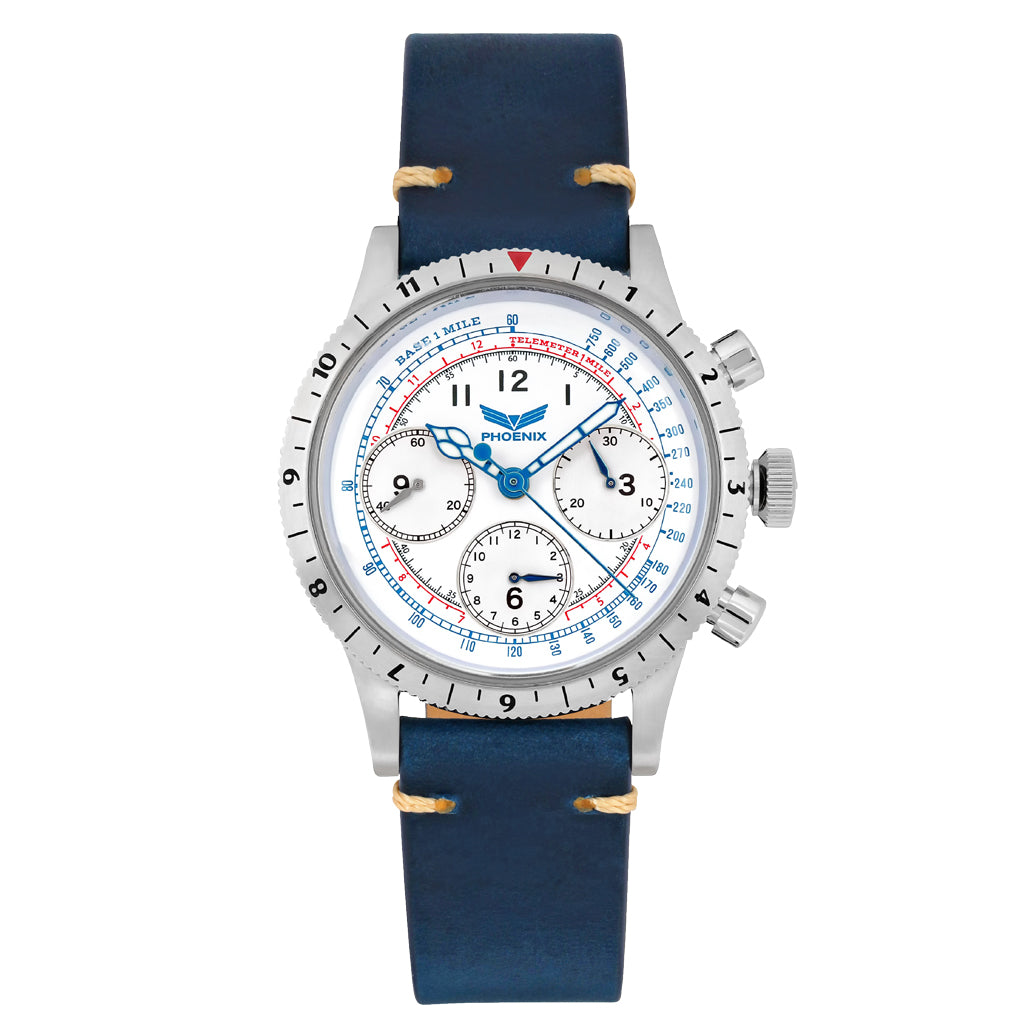

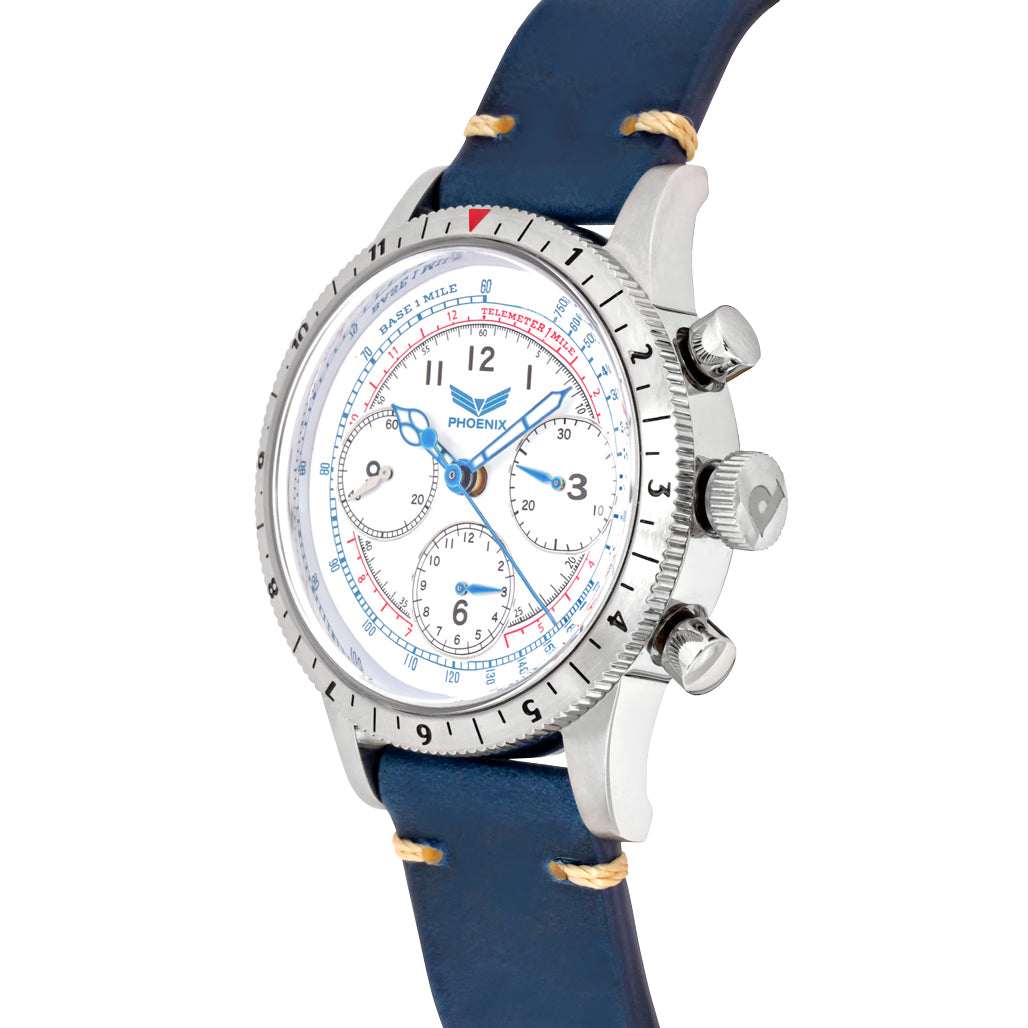

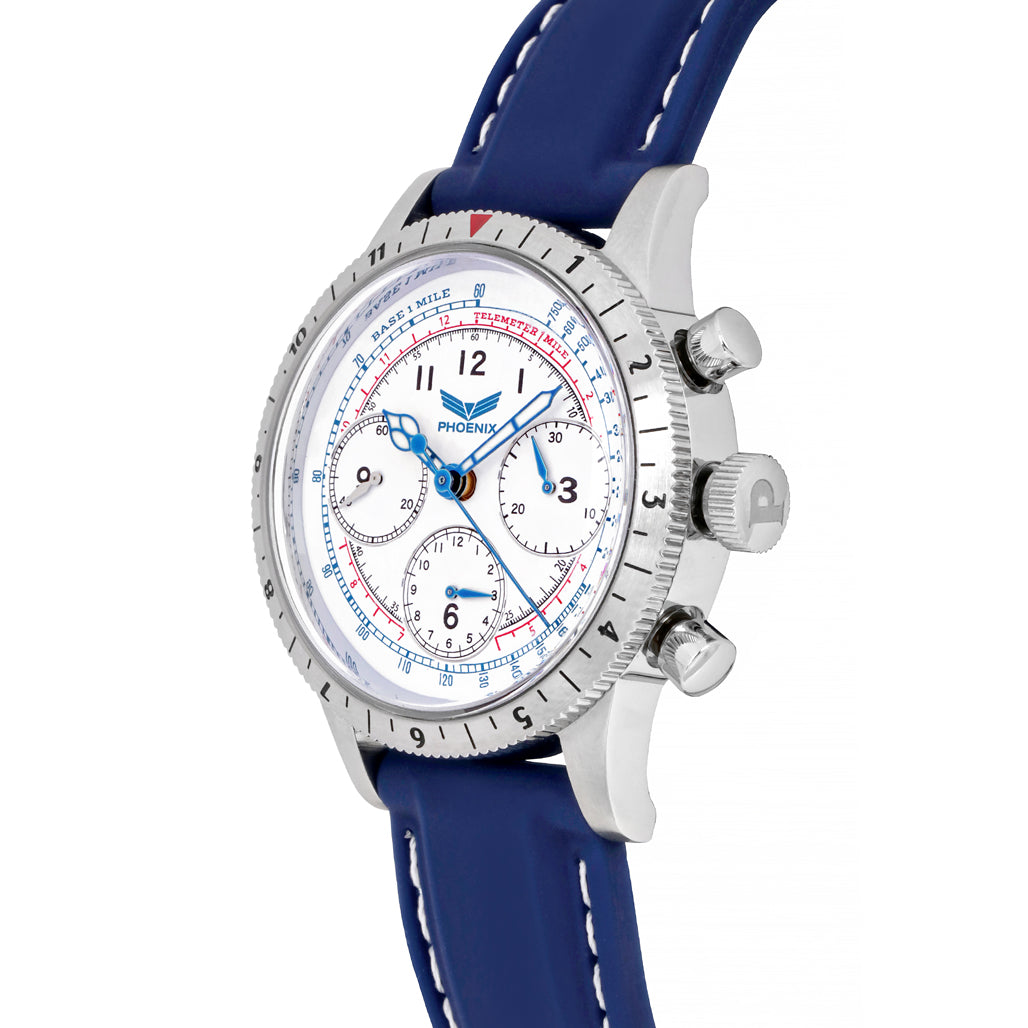

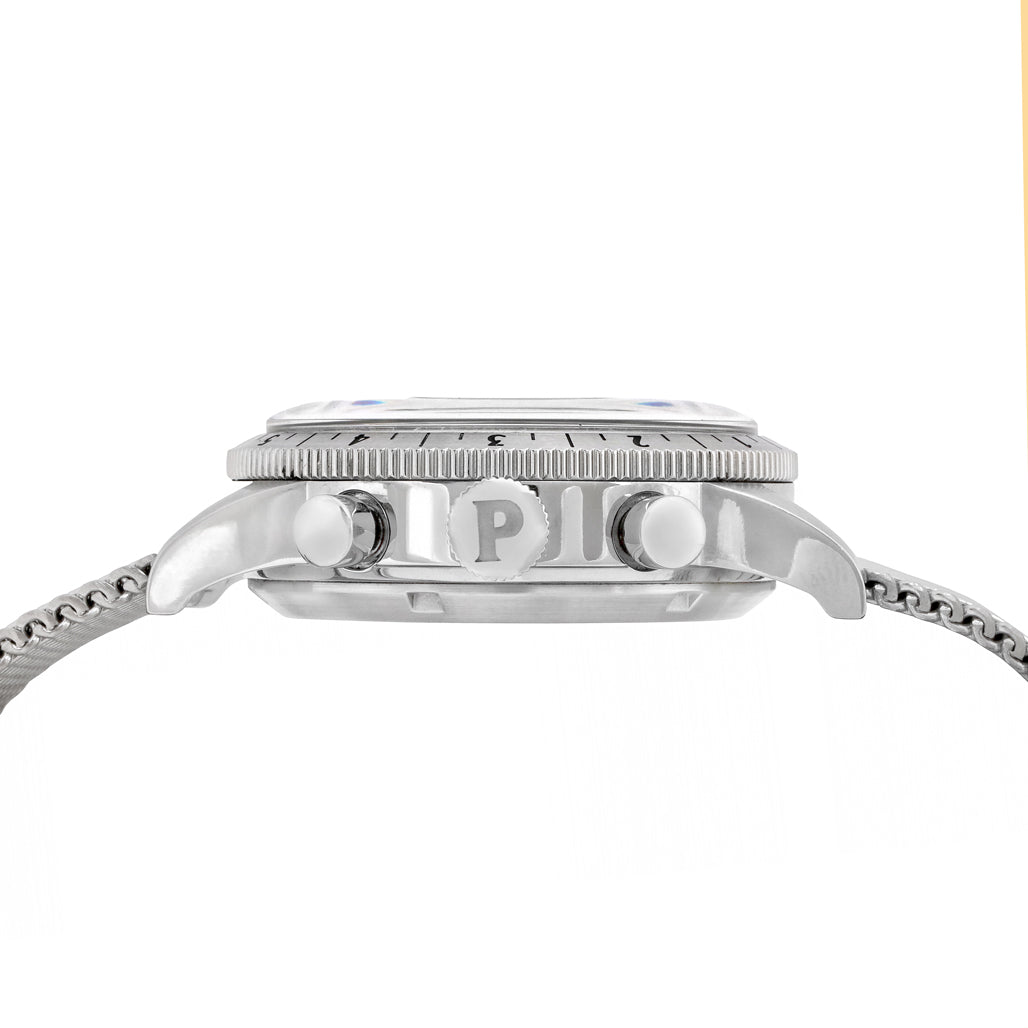

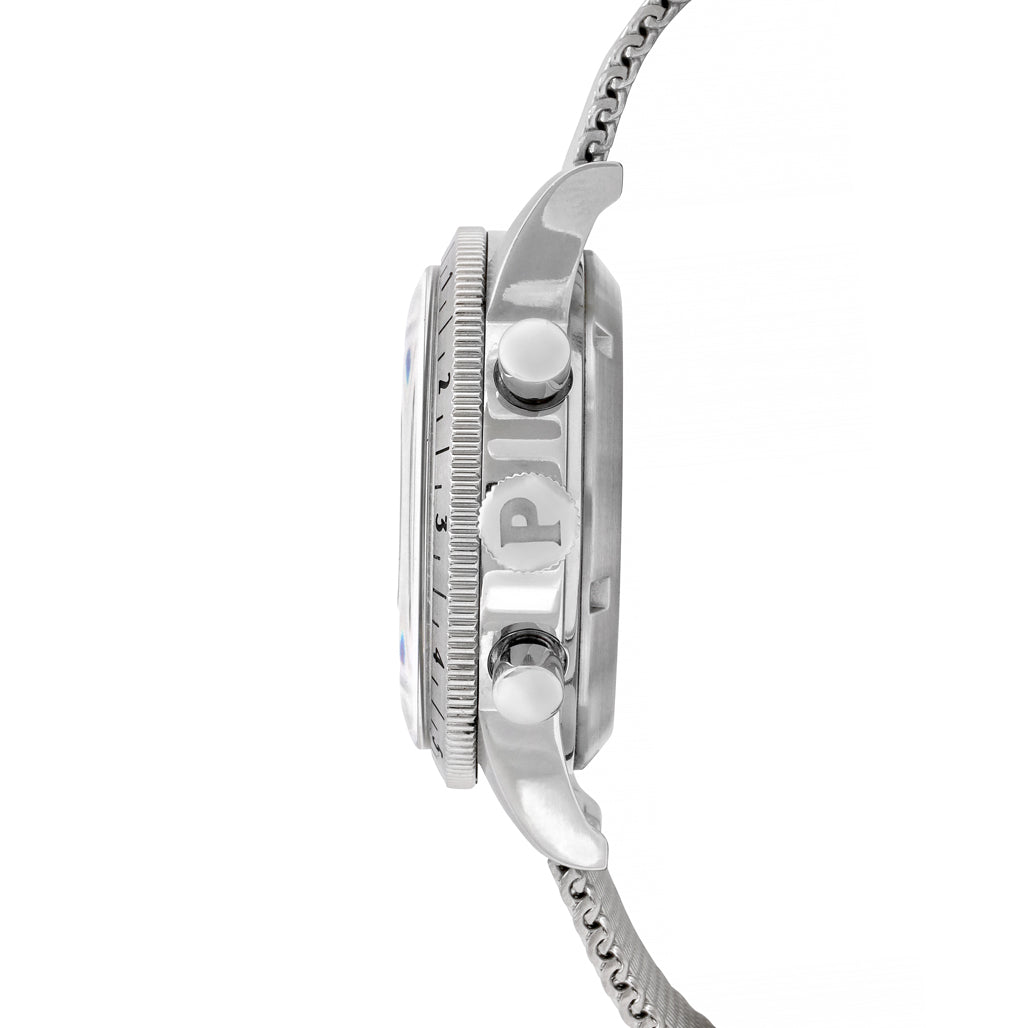

Phoenix American Eagle Tri-Compax Chronograph-Chronometer / White Dial 40mm Stainless Steel
The Phoenix Eagle series embodies the classic styling of early American pilot chronographs in a modern 40mm frame. Honest to the original engineering, the Phoenix Eagle series uses an extra thick and gin-clear shatterproof acrylic crystal over the custom dials, while the modern addition of a flat sapphire crystal on the back creates a porthole to view the exquisite finishing and blued steel elements of the Chronograph/Chronometer movement within. Comfortable on the wrist and easy to read, the Phoenix Eagle series use multiple layers of Super-LumiNova on the numerals and hands for superb low-light legibility. Interval timing (chronograph) is actuated by the crisp push-button actuation of a column-wheel system for start/stop and reset, while the smooth action (no-click) of the bi-directional bezel acts as a second time zone. On the dial the tachymeter scale (in blue) is used to calculate speed - or units per hour, while the telemeter scale (in red) will determine how far you are from lightning (or artillery rounds historically) based on the difference between when you see the flash and when you hear the sound.
Limited to 100 individually numbered watches, each example of the Phoenix American Eagle series is hand-built, chronometer regulated, and individually certified as water resistant by our own Certified Master Watchmaker in a state of the art clean room and watchmaking facility right here in the USA.
SPECIFICATIONS:
Phoenix American Eagle Tri-Compax Chronograph-Chronometer / White Dial 40mm Stainless Steel
- Movement:
13 1/4"' LA JOUX-PERRET Chronograph / Chronometer Calibre L112 Tri-compax TOP FINISH Automatic Winding Movement. 60 Hour Power reserve, 26 Jewels, 28,800 Frequency,Column Wheel/Crown Wheel Controlled Chronograph - Case:
40mm Brushed & Polished 316L Stainless Steel - Back:

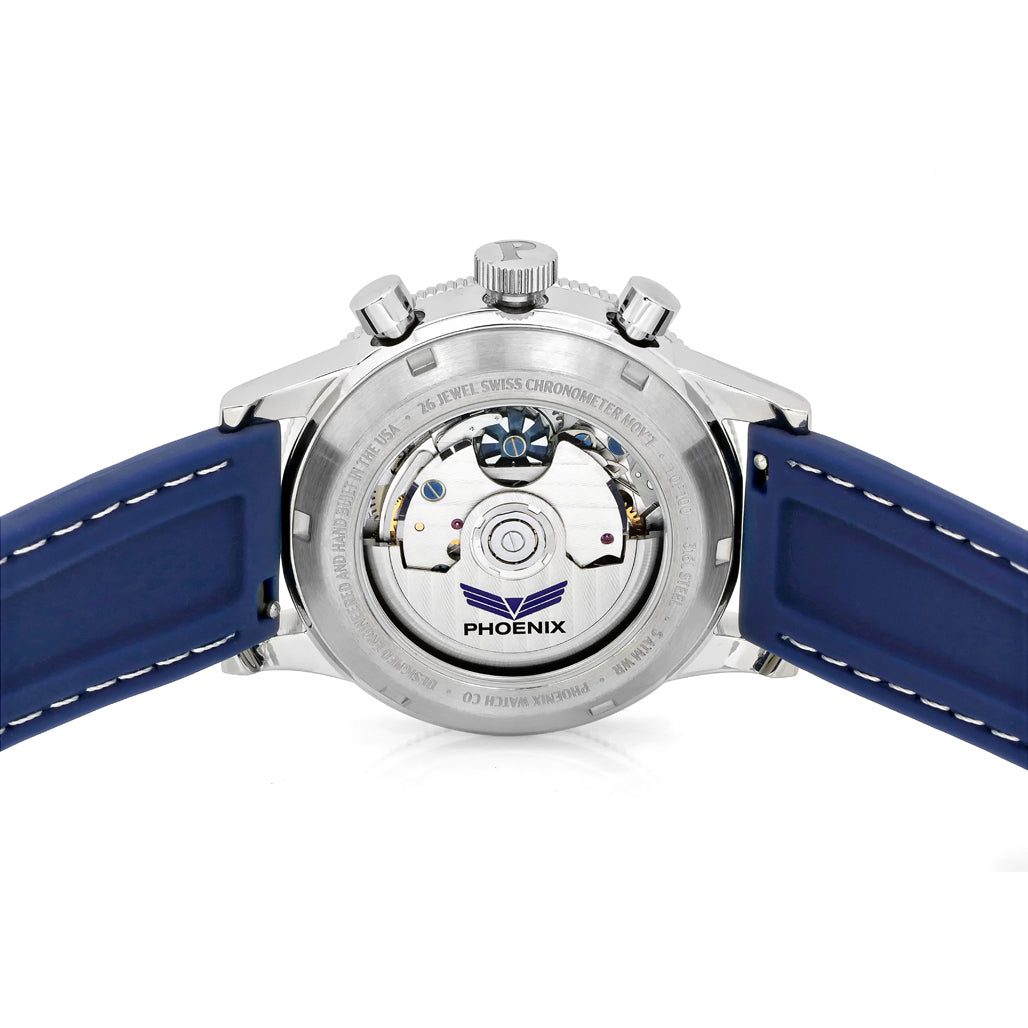

Individually Numbered Screw-Down Sapphire Crystal Exhibition Caseback - Crystal:
Optically Superior / Extra Thick Shatterproof Acrylic Crystal (Period Correct/ Impact resistant) - Band/Straps:
Leather, NATO (Milanese Stainless Optional) - Water Resistant:
5 atm / Individually Tested - Weight:
83 grams (Watch Head Only) - Warranty:
2 Year
MOVEMENT:
Phoenix American Eagle Tri-Compax Chronograph-Chronometer / White Dial 40mm Stainless Steel
- Movement:
Top finish automatic winding mechanical chronograph/chronometer Calibre LJP L112 - Precision
-4/+4 sec/day, adjusted 5 positions - Functions
Center hour and minute hands, small seconds hand at 9 o'clock. Chronograph via center seconds hand, 30-minute counter at 3 o'clock and 12-hour counter at 6 o'clock. Stop/hacking seconds for precise time setting
- Oscillator
Lever escapement, Nivarox balance spring, Incabloc shock absorber, 28,800 frequency, micro-adjustment - Winding
Uni-Directional self-winding via custom rotor with decoration and Phoenix logo. - Power reserve
60 hours - Decoration
Mainplate & Balance Cock: Perlage (Circular Graining) Gear Train Bridge, Winding Bridge, Oscillator: Geneva Wave, Column Wheel & Screws: High Polished & Heat Blued, Gear Train: Frosted Finish, Springs/Levers: Straight-line brushed, Oscillator: Geneva Waves & Custom Logo in Two Colors
MANUAL:
Click here to download the manual.
Choose options
Designed, Engineered and Hand Built in the USA
PHOENIX
CASEBACK
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Take A Look
At The Movement
Chronograph Seconds: Center
Chronograph 30 minute counter: 3 o'clock
Chronograph Hour Counter: 12 o'clock
Running Seconds: 9 o'clock
Dimensions: Ø30.40 x 7.90 mm
Casing diameter: Ø30.00 mm
Frequency: 28,800 BPH
Stop second/Hacking: Yes
Power reserve: 60 Hours
Winding: Uni-Directional Automatic and Manual
Number of Jewels: 26
